poly_rust

A polytopal DSL with a Rust interpreter

poly_rust

Express, prototype, and solve two- and three-dimensional polytopal methods in a syntax close to their mathematical formulation.

From a mathematical method to an executable solver

poly_rust is DOF-centered and designed around the operator-based structure of modern polytopal methods. Basic users describe a method in a .dsl file; reusable Rust facilities handle interpretation, assembly, solution, and post-processing.

General polytopal meshes

Work with polygonal and polyhedral meshes in two and three dimensions rather than restricting discretizations to standard cells.

{ }

External DSL

Define spaces, interpolants, reconstructions, forms, boundary conditions, problems, error functionals, and exports in one method description.

HHO, DDR, VEM and beyond

The vocabulary supports several families of polytopal methods and both atomic and Cartesian-product spaces.

R

Rust numerical core

Memory safety, parallel assembly, polynomial integration paths, dense local algebra, and sparse global solves.

Built for fast prototyping

Operator exactness tests, convergence scripts, error evaluation, and VTU export shorten the implement–check–refine loop.

$

Problem-agnostic solvers

Generic command-line solvers cover steady and unsteady, linear and nonlinear problems, with native and external sparse-solver backends.

A DSL close to the discrete formulation

Local reconstruction operators and assembled forms are written in a notation intentionally close to their mathematical definitions.

HHO Poisson — core method definition
method hho_poisson {
  // Data corresponding to u(x,y) = sin(pi x) sin(pi y)
  function source(vector X) -> scalar =
    2.0 * pow(3.141592653589793, 2.0)
    * sin(3.141592653589793 * X[0]) * sin(3.141592653589793 * X[1])
  function boundary_data(vector X) -> scalar = 0.0

  space Uh {
    element Poly(k, scalar)
    edge Poly(k, scalar)
  }

  operator potential_reconstruction : Uh(u) -> Poly(k+1, scalar) on element T {
    forall q in Poly(k+1, scalar):
      int(T) grad(potential_reconstruction(u)) dot grad(q) =
      - int(T) dof(u, T) * div(grad(q))
      + int(dT) dof(u, E) * (grad(q) dot normal)
    constraint int(T) potential_reconstruction(u) = int(T) dof(u, T)
  }

  operator element_difference : Uh(u) -> Poly(k, scalar) on element T {
    forall q in Poly(k, scalar):
      int(T) element_difference(u) * q =
      int(T) (potential_reconstruction(u) - dof(u, T)) * q
  }

  operator edge_difference : Uh(u) -> Poly(k, scalar) on edge E of element T {
    forall q in Poly(k, scalar):
      int(E) edge_difference(u) * q =
      int(E) (potential_reconstruction(u) - dof(u, E) - element_difference(u)) * q
  }

  linear form load : Uh(test v) {
    sum_elements(int(T) source * dof(v, T))
  }

  bilinear form poisson : Uh(trial u) times Uh(test v) {
    sum_elements(
      int(T) grad(potential_reconstruction(u)) dot grad(potential_reconstruction(v))
      + pow(diameter(T), -1.0) * int(dT) edge_difference(u) * edge_difference(v)
    )
  }

  boundary conditions dirichlet_boundary_conditions on Uh {
    on edge E:
      dof(E) = l2_project(boundary_data, Poly(k, scalar))
  }

  linear problem hho_poisson_problem on Uh {
    lhs { poisson }
    rhs { load }
    boundary conditions dirichlet_boundary_conditions
    export { potential_reconstruction }
  }
}

Solver workflow

1
Read inputs Mesh, polynomial degree, and DSL source.
2
Parse and validate Syntax, semantics, spaces, operators, and selected problem.
3
Construct the method Discrete spaces, interpolants, local operators, forms, and boundary data.
4
Assemble and solve Build and solve the sparse algebraic system.
5
Post-process Error functionals, exactness tests, convergence data, and exported fields.

Numerical examples

These are the numerical examples from the companion paper. The links below point to the exact DSL configuration files used for the corresponding computations in the manuscript.

Run an example from the paper

For example, with poly_rust installed through Homebrew on an Apple Silicon Mac, download hho_poisson_mixed_boundary_conditions.dsl to your Downloads folder and run:

dsl_solver_linear_problem \
  --mesh /opt/homebrew/share/poly-rust/meshes/2d/unit-square-tria/unit-square-tria_1.vtk \
  --dsl ~/Downloads/hho_poisson_mixed_boundary_conditions.dsl

This runs the HHO Poisson test with mixed boundary conditions used in the companion paper on the first unit-square mesh distributed with the Homebrew package.

DSL configuration files from the paper

The following files are the configurations distributed with the companion-paper sources and used for its numerical examples.

Poisson · mixed boundary conditions HHO DDR

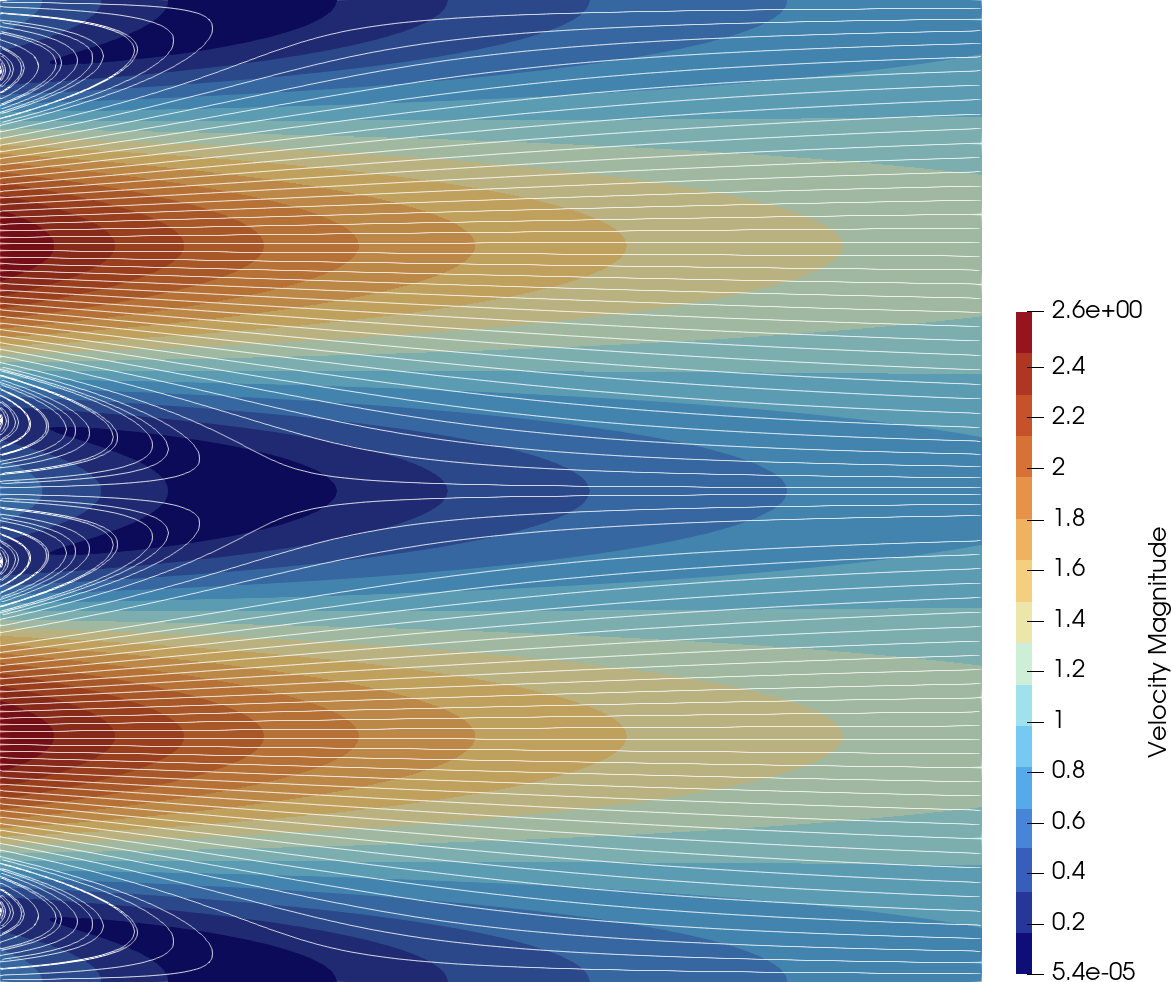

Kovasznay Navier–Stokes HHO HYPRE
Kirchhoff–Love · four-point load HHO DDR

Installation

Binary packages are the simplest route for end users. A public source snapshot is provided for reproducibility; access to the development Git repository is restricted to developers.

macOS with Homebrew

Add the public tap and install the current bottle:

brew tap dpietro/tap https://plmlab.math.cnrs.fr/dpietro/homebrew-tap.git
brew install dpietro/tap/poly-rust

If Homebrew asks you to trust third-party taps, run brew trust dpietro/tap and repeat the installation.

With the default Homebrew layout, DSL configuration files and meshes are stored under $(brew --prefix poly-rust)/share/poly-rust, in the config/ and meshes/ subdirectories.

Verify the installation with:

brew test dpietro/tap/poly-rust

Debian 12 / Ubuntu 24.04 / 26.04 .deb

The packages contain the steady and unsteady linear/nonlinear DSL solvers, 2D and 3D example configurations and meshes, and the Emacs mode for the DSL. UMFPACK and PETSc support are included.

Download the package matching your distribution from the public package repository:

↗ Debian and Ubuntu package repository

Debian 12, amd64:

sudo apt install ./poly-rust_0.12.3-1~debian12_amd64.deb

Ubuntu 24.04 LTS, amd64:

sudo apt install ./poly-rust_0.12.3-1~ubuntu24.04_amd64.deb

Ubuntu 26.04 LTS, amd64:

sudo apt install ./poly-rust_0.12.3-1~ubuntu26.04_amd64.deb

For an ARM system, use the corresponding _arm64.deb package instead.

With the default package layout, DSL configuration files are in /usr/share/poly-rust/config and meshes are in /usr/share/poly-rust/meshes.

Source and development

The source snapshot for version 0.12.3 is the same public, dependency-vendored archive used by the Homebrew release.

↓ Download poly_rust 0.12.3 source snapshot

The development Git repository is intended for developers only and requires appropriate access. Developers with access can clone it and build with Cargo. The full external-solver configuration enables both the umfpack and petsc features.

git clone https://plmlab.math.cnrs.fr/dpietro/poly_rust.git
cd poly_rust
cargo build --release --features "umfpack petsc"

Developer Git: https://plmlab.math.cnrs.fr/dpietro/poly_rust (restricted access).

PolyRust DSL Editor 0.6.1

A lightweight desktop editor for .dsl method files, with parser-backed validation and direct access to the installed poly_rust solvers and convergence tools. Version 0.6.1 adds convergence-test progress feedback and improves code suggestions and LaTeX export validation.

{ }

DSL-aware editing

Syntax highlighting, automatic indentation, multiple files, native open/save dialogs, an outline, symbol navigation, and safe rename support.

Live validation

The PolyRust parser reports inline diagnostics while you edit and supplies the declaration outline used for navigation.

Run and compare

Launch steady or unsteady linear and nonlinear solvers, run convergence studies with a live progress bar, inspect output, and export charts.

Install the editor

macOS with Homebrew

Add the public tap and install the editor. Homebrew installs the compatible poly_rust formula as a dependency.

brew tap dpietro/tap https://plmlab.math.cnrs.fr/dpietro/homebrew-tap.git
brew install dpietro/tap/poly-rust-editor
poly-rust-editor

The editor requires poly_rust 0.11.10 or newer. If the tap is already configured, only the brew install command is needed.

Debian 12 / Ubuntu 24.04 / 26.04 .deb

Download the matching library and editor packages, place them in the same directory, and install them together so that APT can satisfy the editor’s poly-rust (>= 0.11.10) dependency.

Debian 12, amd64:

sudo apt install \
  ./poly-rust_0.12.3-1~debian12_amd64.deb \
  ./poly-rust-dsl-editor_0.6.1-1~debian12_amd64.deb

Ubuntu 24.04 LTS, amd64:

sudo apt install \
  ./poly-rust_0.12.3-1~ubuntu24.04_amd64.deb \
  ./poly-rust-dsl-editor_0.6.1-1~ubuntu24.04_amd64.deb

Ubuntu 26.04 LTS, amd64:

sudo apt install \
  ./poly-rust_0.12.3-1~ubuntu26.04_amd64.deb \
  ./poly-rust-dsl-editor_0.6.1-1~ubuntu26.04_amd64.deb

For an ARM system, use the corresponding _arm64.deb files instead. Launch the installed application from the desktop menu or run poly-rust-editor.

↗ PolyRust Debian and Ubuntu packages ↗ PolyRust DSL Editor repository

What’s new in 0.12.0

Version 0.12.0 adds richer runtime control and reporting to the poly_rust DSL solvers and consolidates nonlinear expression handling.

f(u)

Reported functionals

Steady and unsteady problems can select scalar functionals to evaluate and report at the discrete solution or final time.

p=

Runtime parameter overrides

Solver commands accept repeatable --parameter NAME=VALUE options and print the effective values used for each run.

1e−4

Scientific notation

Numeric literals in DSL files now accept scientific notation, making very large and very small parameter values concise and readable.

D

Unified differential algebra

A shared differential algebra differentiates nonlinear scalar and tensor expressions consistently, avoiding operator-specific special cases.

Safer solver restarts

State dumps retain parameter overrides, and restarted runs check that the requested parameters match the saved solver state.

VTU

Controlled visualization output

VTU export now caps excessive refinement levels, keeping visualization files at a manageable size.

Companion paper

The manuscript introduces the DSL, the generic solvers, convergence tools, and examples spanning several classes of polytopal methods.

poly_rust: a domain-specific language for polytopal methods with a Rust interpreter

Daniele A. Di Pietro · 2026

Additional resources

Additional material that is not part of the standard poly_rust installation is maintained in a public Git repository.

Download the resources

Clone the public repository over HTTPS:

git clone https://plmlab.math.cnrs.fr/dpietro/poly_rust-resources.git
cd poly_rust-resources

If you already use PLMLab over SSH, the equivalent clone command is git clone git@plmlab.math.cnrs.fr:dpietro/poly_rust-resources.git.

↗ Browse the additional-resources repository
